Anonymization Pipeline

Overview

Filinq provides a 4-step document anonymization pipeline for GDPR-compliant processing. Files are uploaded to a per-user Filinq folder, analyzed for personally identifiable information (PII), and anonymized by replacing detected entities with placeholders. All processing runs 100% locally.

Pipeline Steps

Upload: Drag-and-drop or select a file to upload to your Filinq/ folder
Analyze: Extract text and detect entities (persons, organizations, locations, etc.)
Anonymize: Review detected entities and anonymize the document
Done: Download the anonymized document

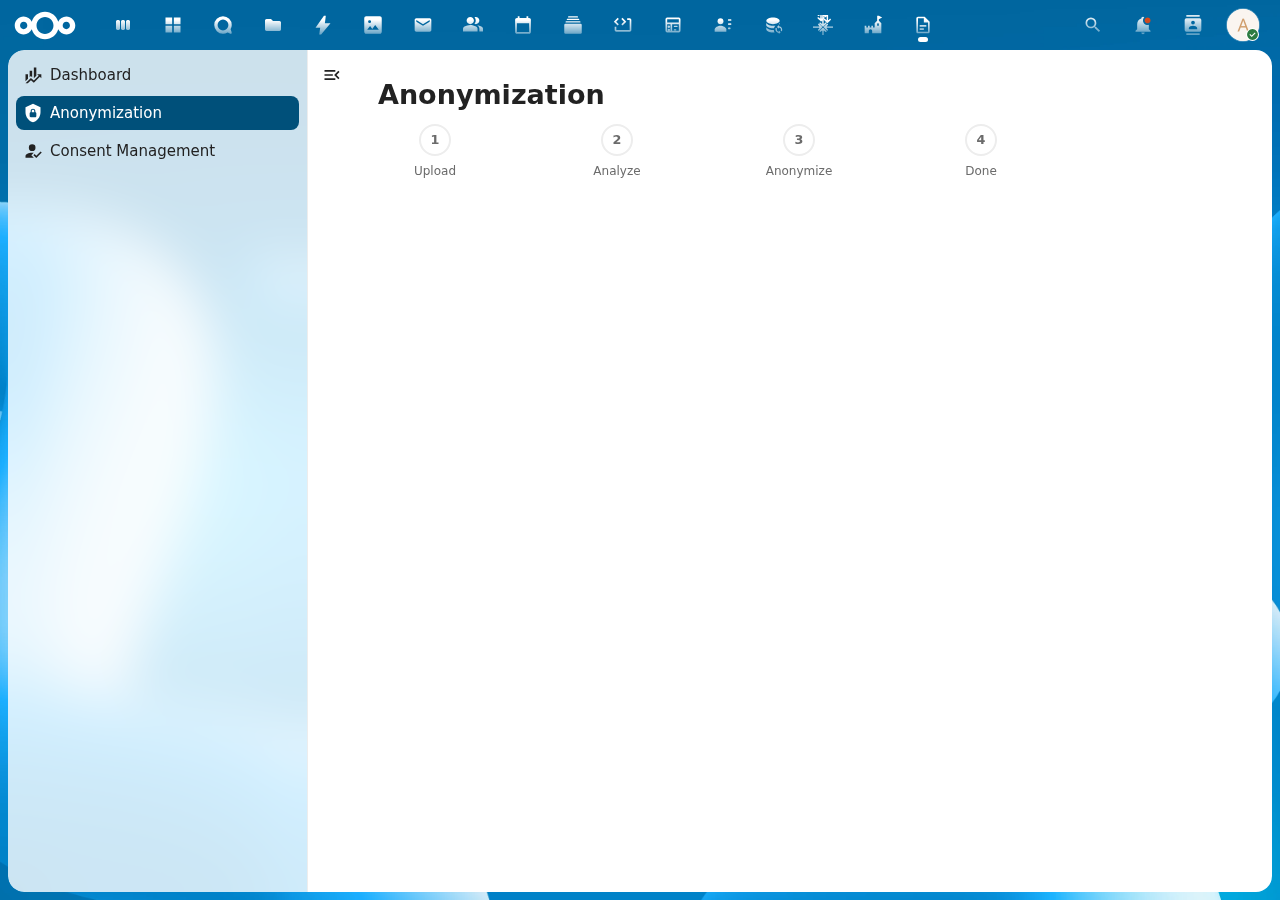

Screenshot

Anonymization Pipeline

API Endpoints

Method	URL	Description
GET	`/api/anonymization/files`	List processed files with entity counts
POST	`/api/anonymization/upload`	Upload file (multipart form data)
POST	`/api/anonymization/extract/{fileId}`	Extract text and detect entities
POST	`/api/anonymization/anonymize/{fileId}`	Anonymize document

Per-Entity Legal Bases (grondslagen)

Legal bases for detected entities are set per-relation via OpenRegister's own PATCH /api/entity-relations/{id} endpoint, not via Filinq's anonymise payload. Filinq does not accept, forward, or persist a bases[] field on anonymise requests.

Any stray bases field that appears on an incoming entity entry is silently ignored — Filinq returns HTTP 200 and the field is dropped. This preserves backwards-compatibility with any caller that was built against an older contract.

To attach bases to a detected entity:

Call Filinq's extract endpoint to obtain the entity key.
PATCH the corresponding EntityRelation row on OpenRegister with {bases: ["uuid-of-woo-art5-grondslag", ...]}.
Call Filinq's anonymise endpoint as normal (no bases field needed).

Prohibition Match on Extract Response

The extract endpoint now includes a prohibitionMatch field per detected entity. This allows the frontend to render prohibition state without re-running the matcher client-side.

{
  "entities": [
    {
      "type": "PERSON",
      "value": "Jan Janssen",
      "confidence": 0.96,
      "prohibitionMatch": {
        "ruleId": "rule-uuid",
        "ruleName": "Beschermde Getuige A",
        "highConfidence": true
      }
    }
  ]
}

prohibitionMatch is null when no publication-prohibition rule matches the entity.
highConfidence is true when confidence >= threshold (inclusive); threshold defaults to 0.85 and is configurable via filinq.prohibition.high_confidence_threshold.
Requires PolicyMatchService from anonymisation-prohibition-gate; returns null for all entities when that service is not yet installed.

CHANGELOG

Added

prohibitionMatch field on each entity in the extract endpoint response: null when no rule matches, or { ruleId, ruleName, highConfidence } when matched.
Stray bases[] field on anonymise payload entities is now silently ignored (do NOT 400) to preserve backwards-compatibility with older callers. Bases are set via OR's PATCH endpoint instead.

appendBasisSummary flag

An optional per-call boolean flag appendBasisSummary (default false) can be set on the per-document and batch anonymize endpoints.

Mode	Effect
`outputFormat: "pdf"` (default)	The grondslagen summary is appended as an extra page to the anonymised PDF.
`outputFormat: "preserve"`	A separate `<original-base>_anonymized_grondslagen.pdf` is written alongside the anonymised native-format file. The response gains `summaryFileId` and `summaryFilePath` fields.

Opt-in mechanics

Send appendBasisSummary: true in the request body. The flag applies to every file when used on the batch endpoint. Files with no EntityRelation.bases data still receive a summary page with ⟨geen grondslag vastgelegd⟩ placeholders.

Warning shape on failure

If the summary rendering fails (e.g. the rendering service is unavailable), the anonymised file is always preserved and HTTP 200 is returned. The response body gains a warning field:

{
  "warning": {
    "code": "SUMMARY_APPEND_FAILED",
    "message": "Basis summary could not be appended. The anonymised file is preserved."
  }
}

Pre-change clients that do not send appendBasisSummary see no behaviour change and no new fields.

See also: docs/features/grondslagen-summary.md (rendering details).

Technical Details

Files stored in Nextcloud filesystem under user's Filinq/ folder
Entity detection via OpenRegister's TextExtractionService (Presidio/OpenAnonymiser)
Anonymization via OpenRegister's FileService
Duplicate file names handled with counter suffix (e.g., report_1.pdf)

Source ↔ anonymised file link (anonymizationLink)

Every successful anonymisation run records a durable mapping between the original (source) file and its anonymised counterpart as an anonymizationLink object in the document register, so the relationship can be resolved in both directions via OpenRegister's search API without re-running analysis.

Idempotent on sourceFileId: one record per source file; re-anonymisation updates that record (preserving its @self) and increments runCount.
Success only: failed runs are not recorded; status is always anonymized.
Best-effort: a persistence failure is logged at warning and never aborts the anonymisation response. On success the response carries anonymizationLinkId.

sourceFileId and anonymizedFileId are facetable, enabling:

# Forward — anonymised file for a given source
GET /apps/openregister/api/objects/filinq/anonymizationLink?sourceFileId=<NC_FILE_ID>
# Reverse — source file for a given anonymised file
GET /apps/openregister/api/objects/filinq/anonymizationLink?anonymizedFileId=<NC_FILE_ID>

The file-viewer sidebar consumes the reverse direction: when a file is opened it first resolves its anonymizationLink by anonymizedFileId. A hit means the file is an anonymised output, so the sidebar shows the read-only 'removed items' review instead of restarting the un-anonymised detection flow. The header subtitle names the source ('Anonymised version of <source>').

The per-entity list is resolved from the [<TYPE>: <id>] placeholders baked into the file's text (each id is looked up read-only via GET /api/entities/{id}). When the text carries no readable placeholders (e.g. a flattened PDF), the sidebar shows a read-only summary from the link object only (replacement count + source name); it does not re-extract, because the extract endpoint mutates (appends) the entity store and opening a file for viewing must stay read-only.

Output format (PDF by default)

Since the anonymise-output-as-pdf-by-default change, the anonymise endpoints produce PDF/A-3b output by default. PDF flattens the redaction into a glyph stream and strips most metadata channels that would otherwise still name the original entities — making the anonymisation harder to revert by editing the file. Since the anonymise-pdf-only-output-mode change, the default additionally deletes the native-format anonymised intermediate so a re-editable copy of the redacted document is not left behind.

Per-call override: `outputFormat`

The POST /api/anonymization/anonymize/{fileId} and POST /api/anonymization/batch/{batchId}/anonymize endpoints accept an optional top-level outputFormat field with three values:

Value	Convert to PDF?	Keep native anonymised file?	Notes
`"pdf-only"` (default)	yes	no — deleted after a successful conversion	the privacy-correct default; only the PDF remains
`"pdf"`	yes	yes	converts but keeps the native intermediate alongside the PDF
`"preserve"`	no	yes (native is the only file)	native input format out (DOCX in → DOCX out, etc.). Legacy behaviour

pdf-only is pdf plus a best-effort delete of the native intermediate on the success path: a cleanup-delete failure is logged at warning level and never fails the run. When the anonymised result is already a PDF, the conversion cascade is skipped, so no native intermediate is created and pdf-only behaves identically to pdf.

If outputFormat is supplied but is not "pdf-only", "pdf", or "preserve", the endpoint returns HTTP 400.

Tenant default

The tenant-wide default is configurable via the Anonymisation → Always export anonymised documents as PDF switch in the admin settings panel. The underlying IAppConfig key is filinq.anonymisation.default_output_format (values: "pdf-only" | "pdf" | "preserve", default "pdf-only"). A per-call outputFormat always overrides the tenant default. To restore the previous keep-both behaviour tenant-wide, set the key to "pdf".

Conversion cascade

When outputFormat is "pdf-only" or "pdf" and the anonymised file isn't already a PDF, the PdfConversionService walks an ordered list of backends. First success wins; total failure aggregates into an HTTP 422 response with the per-backend attempt records.

OfficeAppBackend — uses Nextcloud's OCP\Files\Conversion\IConversionManager (NC 31+). Collabora, OnlyOffice, and Euro Office integrations register as conversion providers under this single API; the backend dispatches to whichever app is installed and configured. Highest fidelity for Word-family documents.
PhpWordBackend — in-process. Reads DOC (MsDoc), DOCX (Word2007), ODT (ODText), RTF, and HTML via PhpOffice\PhpWord; emits PDF/A-3b via the PdfWriter (mPDF-backed). Lower fidelity than a real Office engine but covers all Word-family formats without external dependencies.
MpdfBackend — in-process. Handles HTML and plain-text directly via mPDF, reusing the print-preview PDF/A-3b configuration. TXT inputs are wrapped in a minimal <pre> envelope to preserve whitespace.
EmlBackend — currently stubbed. Activates once OpenRegister adds message/rfc822 text extraction; until then, EML inputs in pdf mode fall through to 422.

Spreadsheet (XLSX, ODS, CSV with layout) and presentation (PPTX, ODP) formats are out of scope for the in-process tiers. They rely on the OfficeAppBackend route only — without a configured Office app, those inputs return 422.

`HTTP 422` body shape

When conversion fails for every backend, the response body documents which were tried and why:

{
  "error": "Conversion to PDF failed; anonymisation rolled back.",
  "conversionAttempts": [
    {"name": "office_app", "available": false, "supports": false, "reason": "backend disabled or prerequisites not present"},
    {"name": "phpword",    "available": true,  "supports": false, "reason": "backend does not support MIME application/vnd.ms-excel / extension xls"},
    {"name": "mpdf",       "available": true,  "supports": false, "reason": "backend does not support MIME application/vnd.ms-excel / extension xls"},
    {"name": "eml",        "available": false, "supports": false, "reason": "backend disabled or prerequisites not present"}
  ],
  "outputFormat": "pdf",
  "fallback": "Set outputFormat to \"preserve\" to bypass conversion if you must keep the native format."
}

The un-converted anonymised intermediate is best-effort deleted before the 422 response is returned. The operator never sees a half-finished mixed-format result.

Batch path

batchAnonymize accepts the same outputFormat. Per-file conversion failure is recorded as an error on that file's batch entry (with a conversionAttempts array) and the batch continues with the next file rather than aborting.

Placeholder-numbering scope (`scope`)

Anonymisation replaces each detected entity with a numbered placeholder (e.g. [PERSOON: 1], [DATUM: 3]). The scope field controls how those numbers are assigned — whether each file is numbered on its own, or a whole folder/dossier shares one consistent numbering so the same entity carries the same number across every file in the set. The flag is forwarded to OpenRegister, which owns the numbering.

Value	Behaviour
`"document"`	Numbers are local to the single file being anonymised. `[PERSOON: 1]` in file A and `[PERSOON: 1]` in file B are unrelated.
`"dossier"`	Numbers are consistent across the dossier folder: a given entity gets the same number in every file of the dossier, so the redacted set reads as one unit.

Defaults differ per endpoint

The default matches the typical unit of work, so you usually don't pass scope at all:

Endpoint	Default `scope`	Rationale
`POST /api/anonymization/anonymize/{fileId}`	`"document"`	A single-file call anonymises one file in isolation.
`POST /api/anonymization/batch/{batchId}/anonymize`	`"dossier"`	A batch is a folder/dossier, so its files share one numbering.

Normalisation is lenient and never errors on an unrecognised value: on the single-file endpoint only "dossier" selects dossier scope (anything else, including omitted, is per-document); on the batch endpoint only "document" selects per-document scope (anything else, including omitted, is dossier).

`dossierKey` (single-file endpoint)

On POST /api/anonymization/anonymize/{fileId}, an optional dossierKey names the folder the file belongs to when scope: "dossier". It is the stable identifier of the dossier folder, so numbering stays consistent across separate single-file calls that target the same dossier. When omitted under scope: "dossier", OpenRegister falls back to the file's parent folder. dossierKey has no effect under scope: "document".

Examples

Anonymise one file, numbered on its own (the default — scope may be omitted):

POST /api/anonymization/anonymize/123
{ "entities": [ ... ], "scope": "document" }

Anonymise one file as part of a dossier, sharing the dossier's numbering:

POST /api/anonymization/anonymize/123
{ "entities": [ ... ], "scope": "dossier", "dossierKey": "dossier-7f3a..." }

Anonymise a batch with per-file (independent) numbering, overriding the batch default:

POST /api/anonymization/batch/abc123/anonymize
{ "entities": [ ... ], "scope": "document" }

API Endpoints (extended)

Method	URL	Description
POST	`/api/anonymization/anonymize/{fileId}`	Anonymise a single file. Body supports `entities`, `outputFormat`, `appendBasisSummary`, `excludeTypes`, `minConfidence`, `scope` (default `document`), `dossierKey`.
POST	`/api/anonymization/batch/{batchId}/anonymize`	Anonymise every file in a batch. Body supports `entities`, `outputFormat`, `appendBasisSummary`, `scope` (default `dossier`).

Source ↔ anonymised file link (anonymizationLink)

Idempotent on sourceFileId: one record per source file; re-anonymisation updates that record (preserving its @self) and increments runCount.
Success only: failed runs are not recorded; status is always anonymized.
Best-effort: a persistence failure is logged at warning and never aborts the anonymisation response. On success the response carries anonymizationLinkId.

sourceFileId and anonymizedFileId are facetable, enabling:

# Forward — anonymised file for a given source
GET /apps/openregister/api/objects/filinq/anonymizationLink?sourceFileId=<NC_FILE_ID>
# Reverse — source file for a given anonymised file
GET /apps/openregister/api/objects/filinq/anonymizationLink?anonymizedFileId=<NC_FILE_ID>
